UIC54 and UIC60 Rail Joint Bar - Typical Railway Fishplates for Transportation

High quality rail joint bars are widely used to ensure the safety of railway transportation. Order now to get more discount!

UIC54 & UIC60 rail joint bar

Among the typical standards of railway joint bars, such as AREMA standard rail joint, UIC standard rail joint, GB standard rail joint, AS standard rail joint and so on, UIC (International Union of Railway) standard rail joint is very popular in the railway market, especially the UIC 54 and UIC60 rail joint bar.
Compared with most rails which are connected by a railway splice bar, some railway tracks can also be joined together through welding. Usually, two or three holes will be drilled in the end of the rail tracks for splices. The hole spacing pattern, also called “drilling”, is measured from the end of the rail to the center of the first hole and from the center of the first hole to the center of the second hole and so on. And the typical drillings might be 2-1/2" x 5" or 3-1/2" x 6" x 6".

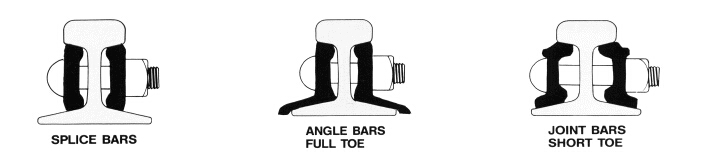

rail splice bars types

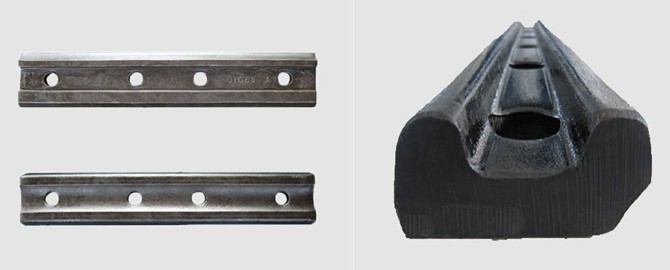

Rail joint bar assembly diagram for UIC54 and UIC60

UIC54 rail joint bar of 4 holes

uic54 of 4 holes

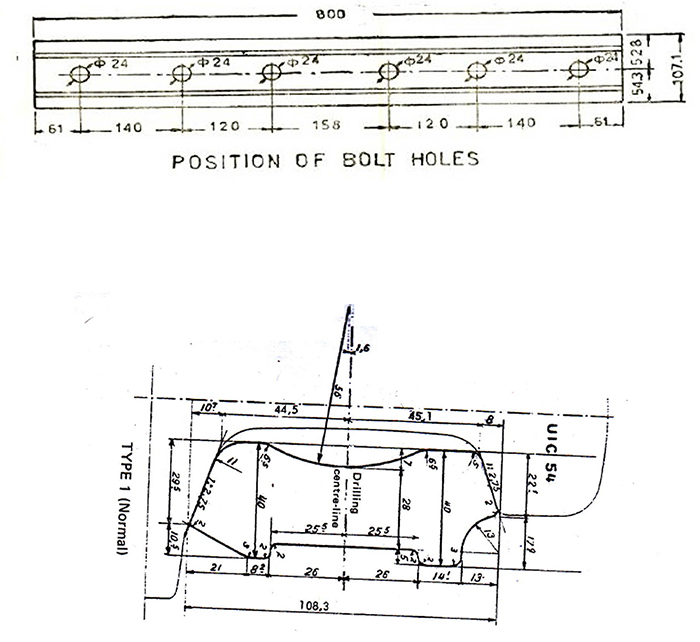

UIC54 rail joint bar of 6 holes
UIC54 rail joint bar of 6 holes

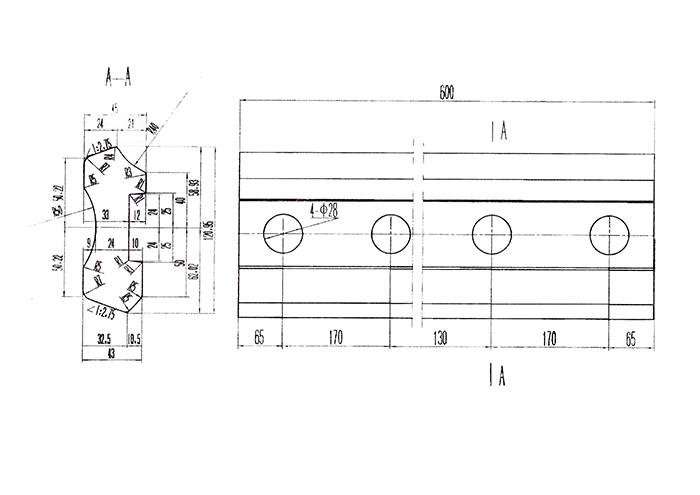

UIC60 rail joint bar of 4 holes
UIC60 rail joint bar of 4 holes

Rail joint bar specification for UIC54 and UIC60


Item Spec Material Unit weight Surface Packing
UIC54-6hole 920mm long, 6holes 55# 22.9kg/pc Plain/Black Oil Bundled by steel strips with iron/wood pallets
UIC54-4hole 630mm long, 4holes 55# 15.6kg/pc Plain/Black Oil Bundled by steel strips with iron/wood pallets
UIC60-6hole 6holes 55#   Plain/Black Oil Bundled by steel strips with iron/wood pallets
UIC60-4hole 4holes 55# 17.5kg/pc Plain/Black Oil Bundled by steel strips with iron/wood pallets

Other typical standards of rail joint bars

BS standard rail joint bars
Item Spec Material Unit weight Surface Packing
BS80A 4holes 50# 6.7kg/pc Plain/Black Oil Bundled by steel strips with iron/wood pallets
BS80O 4holes 45# 7.4kg/pc Plain/Black Oil Bundled by steel strips with iron/wood pallets
BS90A 6holes 55# 13.32kg/pc Plain/Black Oil Bundled by steel strips with iron/wood pallets
BS90A 4holes 50# 9kg/pc Plain/Black Oil Bundled by steel strips with iron/wood pallets

GB standard rail joint bars
Item Spec Material Unit weight Surface Packing
43kg 6holes 55# 43kg/m Plain/Black Oil Bundled by steel strips with iron/wood pallets
50kg 6holes 55# 50kg/m Plain/Black Oil Bundled by steel strips with iron/wood pallets
60kg 6holes 55# 60kg/m Plain/Black Oil Bundled by steel strips with iron/wood pallets

AS standard rail joint bars
Item Material Surface Packing
NIJ-721 50# Plain/Black Oil Bundled by steel strips with iron/wood pallets
NIJ-722 50# Plain/Black Oil Bundled by steel strips with iron/wood pallets

The competitive advantages of Rail Joint of AGICO Rail

  • With over 60% market share in Chinese Railway Field as a railway accessories supplier.
  • Exported to over 50 countries with about 20 international standards.
  • A professional long-term supplier of CRCC for domestic and overseas railway projects.
  • Granted ISO9001-2000 certificate.
  • Own an R&D Center to manufacture international standards including Chinese Standard, South American Standard, UIC, BS, DIN and African Standard according to customers’ drawings or samples.

Why do some railway fishplates have no holes ?

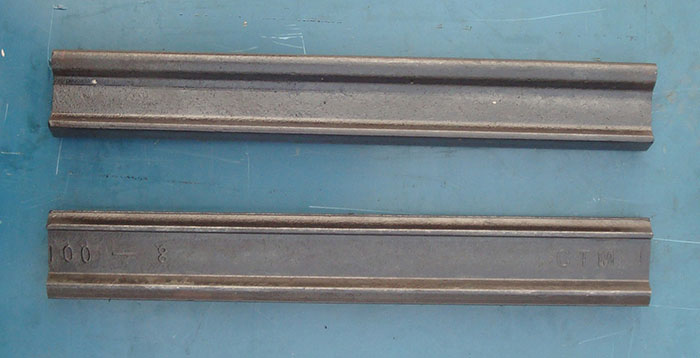

railway-fishplate-with-no-holes

As we all know, the railway fishplate is an important component of railway track system. With the help of track bolt, the railway fishplate can be fastened stably to ensure the safety of railway transportation. Totally, there are four or six holes in the railway fishplate, but as to some railway fishplates, there are no holes on the surface, why?
Because the railway fishplates are usually fastened with the help of track bolts. But sometimes, in order to ensure the immobility of the railway fishplates, the railway fishplates can also be welded to the tracks. So in that condition, there are no holes on the surface of railway fishplates just to improve the convenience for welding.
