Railroad track for sale

Aug 03, 2017

rail track for sale

Rail track, also known as steel rail, railroad track, railroad rail, is a necessary part of railway construction. For specific applications, rail track has a lot of standards, such as UIC, GB, AREMA, BS, DIN and etc.
AGICO Rail has 2 decade experience in manufacturing rail track and related railroad track parts. We have a lot of railway projects around the world. As a leading manufacturer in china, we can provide various standards rail track. Besides, we also supply customization service for non-standard rail products. For your convenience, we list hot-sale rail tracks blow to choose.

Hot-sale railroad tracks from AGICO Rail

UIC 54&UIC 60

UIC860 standard rail track meets rail standard of International Railway Union. UIC54 and UIC60 are two typical models.

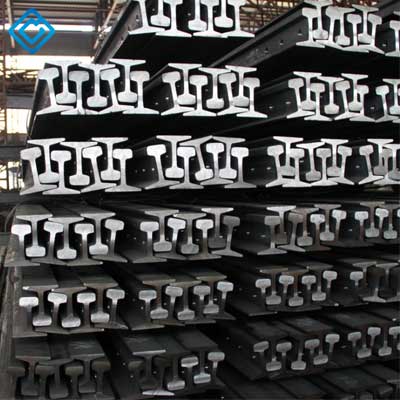

UIC steel rail
Models: UIC54/UIC60
Standard: UIC860-O
Material: 900A/1100
Length: 12-25m


Models Size(mm) Unit weight
(kg/m)
Material Length
(mm)
Head width Rail height Foot width Web thickness
UIC54 70 159 140 16 50.43 700,900A,900B 12-25
UIC60 74.3 172 150 16.5 60.21 700,900A,900B 12-25


AREMA 115RE, 136RE

115RE, 136RE rail track are two hot-sale products in AGICO Rail.

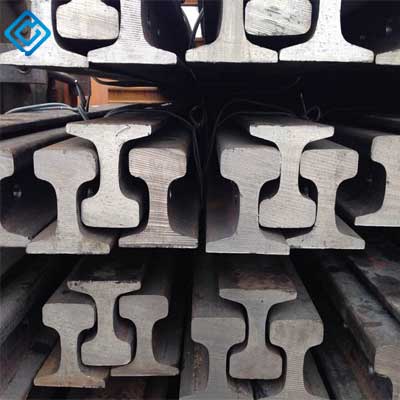

AREMA steel rail

Models Size(mm) Unit weight
(kg/m)
Material Length
(mm)
Head width Rail height Foot width Web thickness
115RE 69.06 168.28 139.7 15.88 56.9 SS,HH,LA,IH 12-25
136RE 74.61 185.74 152.4 17.46 67.41 SS,HH,LA,IH 12-25


GB 38kg, 43kg, 50kg, 60kg, 75kg

GB steel rail

GB11264-1989
Models Size(mm) Unit weight
(kg/m)
Material Length
(mm)
Head width Rail height Foot width Web thickness
12kg 38.10 69.85 69.89 7.54 12.20 Q235 6-10
24kg 51 107 92 10.8 24.46 55Q, 235Q 6-10
38kg 68 134 114 13 38.733 50Mn, U71Mn 12.5
43kg 70 140 114 14.5 44.653 50Mn, U71Mn 12.5


GB 2585-2007
Models Size(mm) Unit weight
(kg/m)
Material Length
(mm)
Head width Rail height Foot width Web thickness
50kg 70 152 132 15.5 51.514 U71Mn
U75V

12.5

60kg 51 107 92 16.5 60.64


GB Crane rails
Models Size(mm) Unit weight
(kg/m)
Material Length
(mm)
Head width Rail height Foot width Web thickness
QU70 70 120 120 28 52.80        U71Mn               9,9.5
10,10.5
11,11.5
12,12.5



QU80 80 130 130 32 63.69
QU100 100 150 150 38 88.96
QU120 120 170 170 44 118.10


BS-11-1985

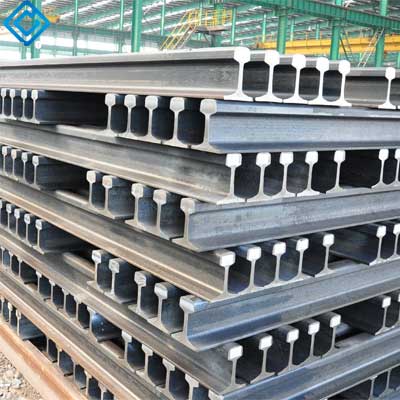

BS steel rail
Models: BS90A, BS100A
Standard: BS11-1985
Material: 700, 900A/900B
Length: 8-25m

Models Size(mm) Unit weight
(kg/m)
Material Length
(mm)
Head width Rail height Foot width Web thickness
90A 66.67 142.88 127 13.89 45.099 700,900A,
900B
8-25

100A 69.85 152.4 133.35 15.08 50.182

Railroad track parts

Except rail track, many other railroad track parts support railway system together. Rail track parts are mostly used to fasten steel rail and railway sleeper, etc. Main types of rail track include rail fastening system, railway fish plate, tie plate, railroad spike, rail clip and so on.

Rail fastening system

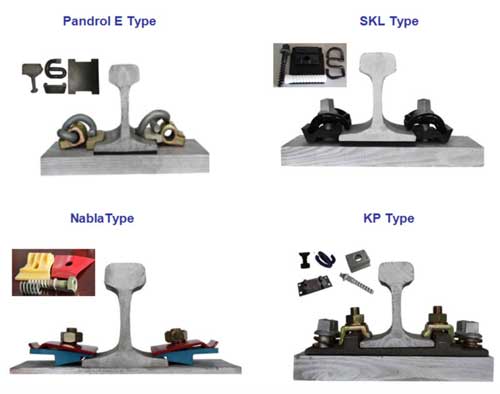

rail fastening system

Rail fastening system is a typical type of rail fastening. It consist of rail clip, railroad spike, rail pad, tie plate, rail bolt, plastic dowel, rail insulator and etc. Main functions of rail fastening system are fix railroad track and maintain the railway stability.
AGICO Rail can customize any standard railway fastening system as your requirements. Popular models in AGICO like e-clip system, SKL-12 system, SKL-14 system, SKL-21 system.

Tie plate

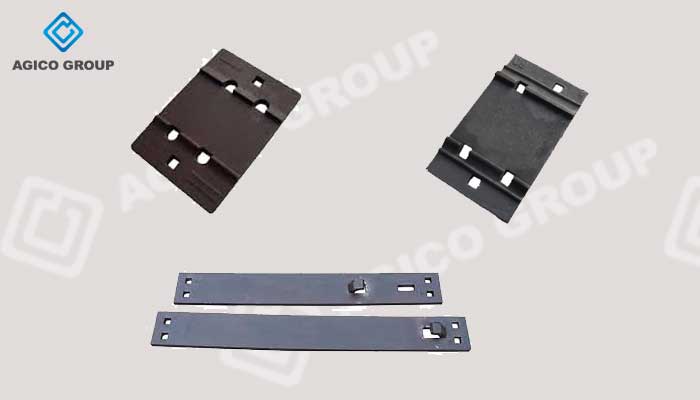

tie plate


AREMA standard tie plate is always our hot product among all railway projects of AGICO Rail. We supply PLAN 4 Tie plate, PLAN 12 Tie plate and PLAN 13 Tie plate.


Name Application Size Material Weight hole
PLAN 4 Tie plate 5-1/2 inch rail base width 7-3 /4” x 11” Q235 5.8 kg  7 holes
PLAN 12 Tie plate 6 inch rail base width 7-3 /4” x 14” Q235 9.45 kg 6 or 8 square holes
PLAN 13 Tie plate 6 inch rail base width 7-3 /4” x 14-3/4” Q235 10.59 kg 4, 5 ,6, 7 , 8 square holes


Besides, 3/4” and 1” thick hook twin tie plates are also our signature products.

For 3/4’’thick: L23, L27, L31, LR23, LR27, LR31, H23, H27, H31.
For 1’’ thick: L29, L33, L37, LR28, LR32, LR36, H29, H33, H37, H41.

Railway fish plate

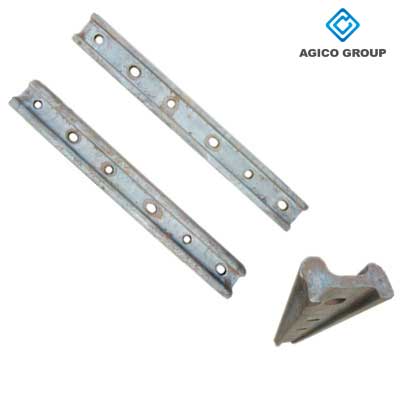

 AREMA rail joint

Railway fish plate or rail joint is generally used to connect two end of railroad tracks. AGICO Rail supply AREMA, UIC and other international standard rail joints. The top of hot-selling list is AREMA standard joint bar. Popular models include 115RE, 136RE rail joint.
