Crane rail fastening system

Crane rail fastening system

  • Size: Bolted Type / Welded Type
  • Standard: customization
  • Surface: according to client
  • Packing: upon customers

The crane rail fastening system, also called crane rail fasteners, is a kind of rail fastening system for crane rail. AGICO Rail are both Specialized in manufacturing and supplying railway materials, we can provide professional rail fastening system solutions for crane rails, as well as designing, production, installation and maintenance services.

The crane rail fastening system of AGICO can be widely used in railway lines, steel mills, ports, wharfs, shipbuilding, mining, coking, power, metallurgy, and other industries.


What’s more, we are also cooperate with Gantrex and Gantrail to provide the crane rail fastening system. It helps to solve the problem of crane track damage caused by the traditional hard track fixing system and prolong the service life of the track system.

crane rail fasteners

Main products & services:

  • GANTREX and GANTRAIL clip fixing systems;
  • GANTREX and GANTRAIL elastomers pad & steel reinforced resilient pad
  • Continuous steel tie plate & non-continuous steel tie plate
  • Crane rails under different standard;
  • Various standard & non-standard track accessories;
  • Aluminum heat welding;
  • Provide track design and installation technical services.
Here is a product catalog for referencepdf

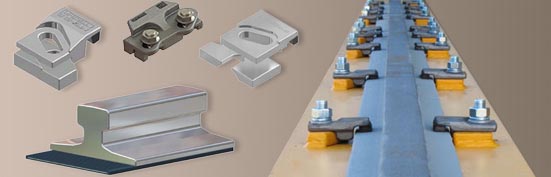

Crane rail clip

  • Bolted Type: 3224/ 3112/ 3116/ 3120/ 3124
  • Welded Type: 9124 /9116 /9120/ 9220/ 1116/ 1216
  • Rail Pad: Mk2/ Mk7
  • Applicable Rail Type: A65/ A100/ A120/ JIS37/ JIS50/ JIS60/ QU80/ QU70/ QU120/ UIC54/ UIC60 etc
crane rail clip
crane rail cclip

Crane rail pad

The crane rail pad is one of the three key ingredients in achieving a reliable track. Both elastomers pad and steel reinforced resilient pad are available in continuous length and individual length to suit the sole plate. The steel reinforced resilient pad  can ensure high lateral stiffness and prevent movement from below the rail.

  • Can be supplied for any crane or railway rail
  • Reduced noise and vibration
  • Improved load distribution
  • Reduced rail wear
  • Reduced fatigue failure

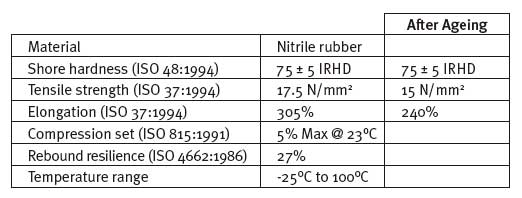

Characteristics of the steel reinforced rail pad:
rail pad

Steel tie plate

As the main component of the track system, the type and shape of the steel tie plate will  be differ according to different projects: Due to the steel structure bearing surface, there’re continuous steel tie plate or the non-continuous steel tie plate optional for use.

steel  tie plate

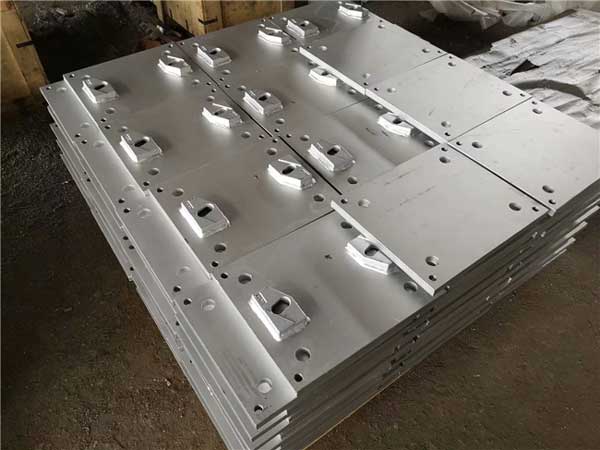

The continuous steel tie plate provides continuous support to the underside of the track.

steel tie plate

The non-continuous steel tie plate structure uses a separate small steel plate base to provide support for the underside of the track.

The size of the steel tie plate, as well as the spacing between clips will be depend on the actual working conditions of the project and the distribution of the wheel pressure of the crane.

AGICO can supply steel tie plate solutions according to the specific technical requirements of the user and the actual situation on site.

Case studies

1. Uganda industrial plant overhead crane project
  • Rail:24kg
  • Clip:1116/15

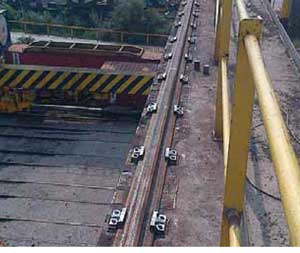

2. US Gulf crane project
  • Rail: QU80
  • Clip: 9216/08/40

3. Seychelles shipyard railway project
  • Rail:60E1
  • Clip:9120/15/38

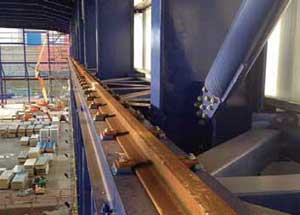

4. Philippines industrial plant crane rail project
  • Rail:60E1
  • Clip:9120/15/38
philippine project
