About railway track

Rail track, also called railroad track, steel track and so on, is widely used in the railway system. Together with the cooperation with the railroad switch, it can make trains running without turning to the other directions. In general, rail track is consist of two parallel steel tracks and lays steadily on the railway sleepers. With the development of railway industry, the steel is widely used in the industry. Compared with other materials, the steel have a larger tolerance to bear more weight. The steel track can disperse the weight of the steel tracks and keep the stability of the railway transportation. The stones under the steel tracks can supply a elasticity to the railroad tracks. During the common life, the steel tracks can lay on the base made of concrete and even can be embedded into concrete.

Types of rail track

Chinese standard

1.Crane rail: QU120,QU100,QU80,QU70. They are most consist of manganese steel.
2.Heavy rail: the 38kg、43kg、50kg standard are widely used. Besides, as to some lines with high speed and vast capacity, they all use the 60kg rail tracks.
3.Light rail: light rail can also classified into two types, GB (China national standards) of 9kg、12kg、15kg、22kg、30kg/m and YB (Metallurgy Department Standard) of 8、18、24kg/m and so on.

Abroad

Among the rail track market in the world, there are many typical types. For example, the BS series (such as 90A, 80A, 75A, 75R, 60A and so on) of British, the DIN series of Germany, the ASCE series of America(such as 115RE, 136RE), the JIS series of Japan and the UIC series of International Union of Railways(such as UIC54, UIC60). See more in the document: International Standard Specification for Steel Track

AGICO Rail can supply railroad tracks of BS, UIC, AREMA, JIS and other international standards. Based on rich experience and strong technology support, our products has been exported to many countries and regions, Learn our projects here. Our rail tracks has advantages as following:

  • Customization service as you need.
  • European Standards and CE Marking
  • Five years warrenty.

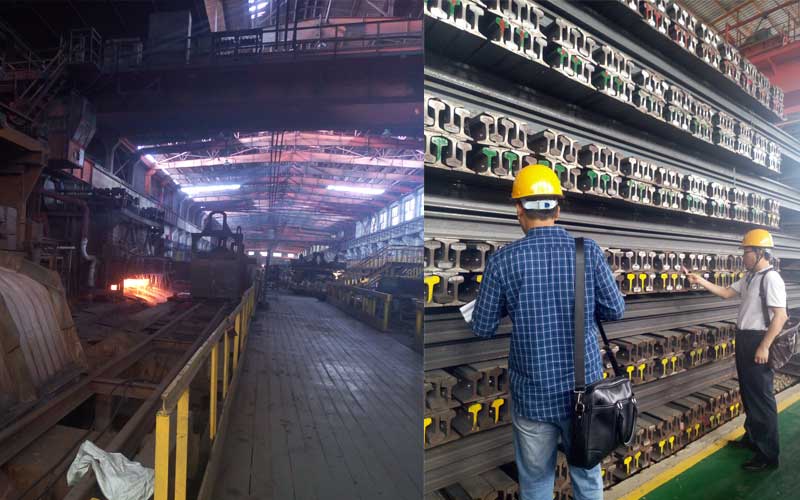

work shop and customer visit

If you have any need, welcome to contact us.

Hot-sale railraod track of AGICO Rail

Standard Sepc. Material Typical Grade
UIC860 UIC54 700,900A,900B
UIC60
EN13674.1 50E1 R200,R350HT,R260Mn,R35LHT,R320Cr,R370CrHT
54E1
60E1
60E2
BS-11-1985 BS80A 700,900A,900B
BS90A
BS100A
AREMA 115RE SS,HH,LA,IH
136RE
ASCE60 U71Mn
ASCE85 U71Mn
GB 2585-2007 50kg/m U71Mn
U75V
60kg/m
75kg/m
TB/T2344-2012 50kg/m U71Mn,U75V,U77MnCr
U78CrV
60kg/m
75kg/m
GB 11264-1989 8kg/m Q235
12kg/m Q235
15kg/m 55Q, Q235
18kg/m 55Q, Q235
22kg/m 55Q, Q235
24kg/m 55Q, Q235
30kg/m 55Q, Q235
38kg/m 50Mn, U71Mn
43kg/m 50Mn, U71Mn
GB Crane rails QU70 U71Mn
QU80 U71Mn
QU100 U71Mn
QU120 U71Mn

Specifications of typical rail tracks

In order to meet the different requirements of railway system, the rail tracks can divided into many types, such as GB standard, BS standard, AREMA standard, UIC standard, JIS standard, Australian standard, etc.

GBstandard

According to the GB standard railway track weight, the 43kg, 50kg and 60kg are widely used in the railway transportation.

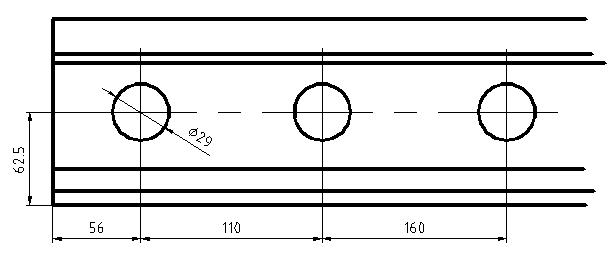

43kg/m rail track size

43kg/m rail track

project 43kg/m rail steel
Height of steel rail ±0.8
Width of railhead ±0.5
Rail on cross section
Joint plate mounting surface slope  +1.0
 -0.5
Joint plate mounting surface height ±0.6
The thickness of the rail waist +1.0
-0.5
Rail bottom width +1.0
-2.0
Rail bottom edge thickness
Rail bottom concave
Section slope (vertical, horizontal direction) <=1.0
Section of asymmetric ±1.5
Length (temperature of 20 degrees)

project  number unit
weight of per meter 44.563 kg
sectional area 57 cm²
the distance between center of gravity and rail base 6.9 cm
moment of inertia on horizontal axis 1489 cm4
moment of inertia on vertical axis 260
the lower section coefficient 217.3 cm3
the upper section coefficient 208.3
the bottom section coefficient Left45.0 right 45.0
metal distribution railhead 42.83 %
rail web 21.31
rail base 35.86

43kgrailtrack
43kg rail track

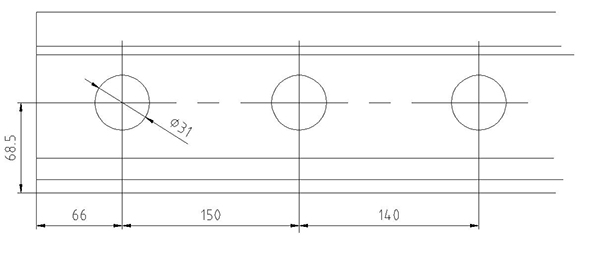

50kg/m rail track size

53kg-rail-track

project 50-75/m
Height of steel rail ±0.6
Width of railhead ±0.5
Rail on cross section
Joint plate mounting surface slope  +1.0
 -0.5
Joint plate mounting surface height +0.6
-0.5
The thickness of the rail waist +1.0
-0.5
Rail bottom width +1.0
-1.5
Rail bottom edge thickness +0.75
-0.5
Rail bottom concave
Section slope (vertical, horizontal direction) <=0.8
Section of asymmetric ±1.2
Length (temperature of 20 degrees)

project  number unit
weight of per meter 51.514 kg
sectional area 65.8 cm²
the distance between center of gravity and rail base 7.1 cm
moment of inertia on horizontal axis 2037 cm4
moment of inertia on vertical axis 377
the lower section coefficient 287.2 cm3
the upper section coefficient 251.3
the bottom section coefficient left&right 57.1
metal distribution railhead 38.68 %
rail web 23.77
rail base 37.55

50kg rail track
50kg rail track

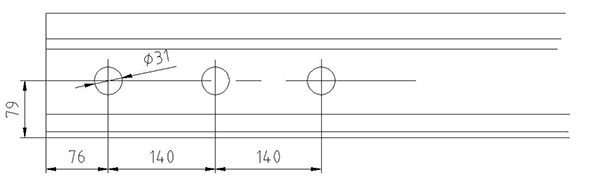

60kg/m rail track size

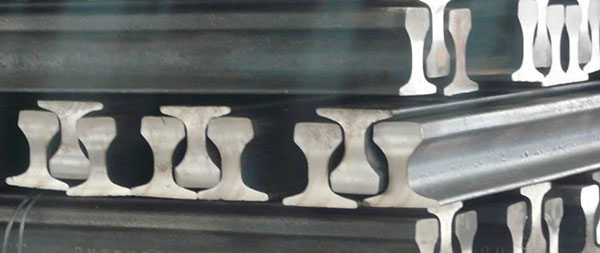

60kg-railroad-track-steel-rail

project  60kg/m rail steel
250km/h 350km/h
Height of steel rail ±0.6
Width of railhead ±0.5
Rail on cross section ±0.6 +0.6
-0.3
Joint plate mounting surface slope  +1.0
 -0.5
±3.5
Joint plate mounting surface height +0.6
-0.5
The thickness of the rail waist +1.0
-0.5
Rail bottom width ±1.0
Rail bottom edge thickness +0.75
-0.5
Rail bottom concave <=0.3
Section slope (vertical, horizontal direction) <=0.6
Section of asymmetric ±1.2
Length (temperature of 20 degrees) ±3.0

project  number unit
weight of per meter 60.643 kg
sectional area 77.45 cm²
the distance between center of gravity and rail base 8.12 cm
moment of inertia on horizontal axis 3217 cm4
moment of inertia on vertical axis 524
the lower section coefficient 396 cm3
the upper section coefficient 339.4
the bottom section coefficient left69.9 right69.9
metal distribution railhead 37.47 %
rail web 25.29
rail base 37.24

60kg rail track
60kg rail track

AREMA standard rail track


Standard: ASTMA1, AREMA
Size Dimension(mm) Weight
(kg/m)
Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
ASCE 25 38.1 69.85 69.85 7.54 12.4 700 6-12
ASCE 30 42.86 79.38 79.38 8.33 14.88 700 6-12
ASCE 40 47.62 88.9 88.9 9.92 19.84 700 6-12
ASCE 60 60.32 107.95 107.95 12.3 29.76 700 6-12
ASCE 75 62.71 122.24 122.24 13.49 37.2 900A/1100 12-25
ASCE 85 65.09 131.76 131.76 14.29 42.17 900A/1100 12-25
90RA 65.09 142.88 130.18 14.29 44.65 900A/1100 12-25
115RE 69.06 168.28 139.7 15.88 56.9 900A/1100 12-25
136RE 74.61 185.74 152.4 17.46 67.41 900A/1100 12-25
175LBs 109.86 152.4 152.4 38.1 86.8 900A/1100 12-25

BS standard rail track


Standard: BS11: 1985
Size Dimension(mm) Weight
(kg/m)
Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
50 O 52.39 100.01 100.01 10.32 24.833 700 6-18
60 A 57.15 114.3 109.54 11.11 30.618 900A 6-18
75 A 61.91 128.59 114.3 12.7 37.455 900A 8-25
75 R 61.91 128.59 122.24 13.1 37.041 900A 8-25
80 A 63.5 133.35 117.47 13.1 39.761 900A 8-25
80 R 63.5 133.35 127 13.49 39.674 900A 8-25
90 A 66.67 142.88 127 13.89 45.099 900A 8-25
100 A 69.85 152.4 133.35 15.08 50.182 900A 8-25
113 A 69.85 158.75 139.7 20 56.398 900A 8-25

UIC standard rail track


Standard: UIC860
Size Dimension(mm) Weight
(kg/m)
Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
UIC50 70 152 125 15 50.46 900A/1100 12-25
UIC54 70 159 140 16 54.43 900A/1100 12-25
UIC60 74.3 172 150 16.5 60.21 900A/1100 12-25

JIS standard rail track

Standard: JIS E1103-91/JISE 1101-93
Size Dimension(mm) Weight
(kg/m)
Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
JIS 15KG 42.86 79.37 79.37 8.33 15.2 JIS E standard 9-10
JIS 22KG 50.8 93.66 93.66 10.72 22.3 9-10
JIS 30KG 60.33 107.95 107.95 12.3 30.1 9-10
JIS 37A 62.71 122.24 122.24 13.49 37.2 10-25
JIS 50N 65 153 127 15 50.4 10-25
CR 73 100 135 140 32 73.3 10-12
CR 100 120 150 155 39 100.2 10-12


DIN standard rail track

Standard: DIN536
Size Dimension(mm) Weight
(kg/m)
Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
A55 55 65 150 31 31.8 900A 10-12
A65 65 75 175 38 43.1 900A 10-12
A75 75 85 200 45 56.2 900A 10-12
A100 100 95 200 60 74.3 900A 10-12
A120 120 105 220 72 100 900A 10-12

ISCR standard rail track

Indian Standard Railway
standard:IS3443-1980
Size Dimension Weight (kg/m) Length
(m)
Material
Head(mm) Height(mm) Bottom(mm) Web(mm)
ISCR50 51.2 90 90 20 29.8 9-12

U71Mn

ISCR60 61.3 105 105 24 40 9-12
ISCR70 70 120 120 28 52.8 9-12
ISCR80 81.7 130 130 32 64.2 9-12
ISCR100 101.9 150 150 38 89 9-12
ISCR120 122 170 170 44 118 9-1


Australian standard rail track

Australian Standard Railway

standard:AS1085

Size Dimension Weight (kg/m) Length
(m)
Material
Head(mm) Height(mm) Bottom(mm) Web(mm)
31KG 63.5 117.5 108 11.5 31.5 8-25 900A/1100
47KG 70 141.3 127 14.3 46.5
50KG 70 154 127 15 50.8
60KG 70 170 146 16.5 61
68KG 73.4 186 152 17.5 67.6
73KG 70 157 146 32 73.63
86KG 102 102 155 84.11 85.5
89KG 102 114 178 51 89.81

South African standard rail track

South African Standard Railway

standard:ISCOR

Size Dimension Weight (kg/m) Length
(m)
Material
Head(mm) Height(mm) Bottom(mm) Web(mm)
15KG 41.28 76.2 76.2 7.54 14.905 9

700

22KG 50.01 95.25 95.25 9.92 22.542 9
30KG 57.15 109.54 109.54 11.5 30.25 9
40KG 63.5 127 127 14 40.31 9-25

900A

48KG 68 150 127 14 47.6 9-25
57KG 71.2 165 140 16 57.4 9-25


EN standard rail track

Standard: EN 13674-1-2003
Size Dimension(mm) Weight
(kg/m)
Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
49 E1 67 149 125 14 49.39 R260/R350HT 12-25
49 E2 67 148 125 14 49.1 R260/R350HT 12-25
50 E1 65 153 134 15.5 50.37 R260/R350HT 12-25
50 E2 72 151 140 15 49.97 R260/R350HT 12-25
50 E4 70 152 125 15 50.46 R260/R350HT 12-25
50 E5 67 148 135 14 49.9 R260/R350HT 12-25
50 E6 65 153 140 15.5 50.9 R260/R350HT 12-25
54 E1 70 159 140 16 54.77 R260/R350HT 12-25
54 E2 67.01 161 125 16 53.82 R260/R350HT 12-25
54 E3 67 154 125 16 54.57 R260/R350HT 12-25
55 E1 62 155 134 19 56.03 R260/R350HT 12-25
60 E1 72 172 150 16.5 60.21 R260/R350HT 12-25


Grooved rail track

Size Height (mm) Bottom (mm) Head A (mm) Head B(mm) Channel A (mm) Channel B (mm) Web (mm) Weight (kg/m)
59R1 180 180 113 56 42 15 12 58.97
59R2 180 180 113 55.83 42.52 14.65 12 58.14
60R1 180 180 113 56 36 21 12 60.59
60R2 180 180 113 55.83 36.34 20.83 12 59.75
