rail bolt

Track bolts are used to fasten rail ends together at a joint. The sizes of track bolts are varying with the requirements of the section of rail. The proper diameter and length of the track bolt can be determined by checking the applicable railway standard.

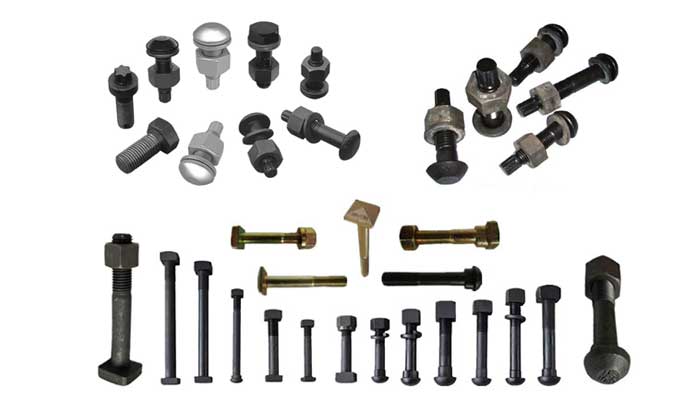

The track bolts can be classified into several types, such as, Button head oval neck track bolt, Diamond neck track bolt, Rail bolt NF F50-008, Fish bolt, Track bolt of Russian standard, Clip bolt, Clamp bolt and inserted bolt for Russia, , anchor bolt, T-bolt clamp and other special bolts, etc.

Application Criteria of Track Bolts

According to related rail standards, each joint needs to be bolted with at least two bolts in each rail tightened to approximately 400 foot-pounds of torque which develops between 25,000, and 30, 000 pounds of tension in the bolts.

  1. Bolts in use have to be in the proper size and tightly in place.
  2. Bolts have to be installed with AREMA spring washers whereas the nuts have to be installed against the spring washer.
  3. Bolts have to be installed and the nuts have to installed alternately on the inside and outside of the rail.
  4. When bolts and joint bars are moved away, the joint area of the rail and the contact surface of the joint bar have to be cleaned and the joint bar and the bolt threads have to be lubricated.
  5. Safety standards require that on operation are permitted over rails where all bolts are missing or ineffective

Agico Track Bolts

The parameters of Agico Track Bolts are presented in the following for your reference:

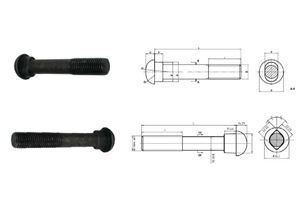

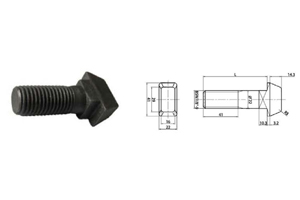

Button head oval neck track bolt

button head oval neck tack bolt Material: Carbon steel
Grade: 8.8 10.9
Size: Dia. M5-M42
Surface: zinc plated

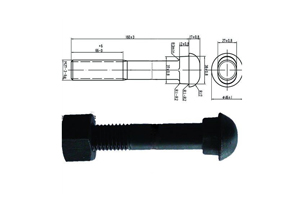

Diamond neck track bolt diomond neck track bolt Material: Q235, 35#, 45#
Grade: 4.6, 5.6, 8.8 10.9
Standard: UIS864-2
Surface: plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing

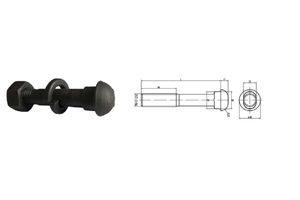

Rail bolt NF F50-008 rail bolt NF F50-008 Material: Q235, 35#, 45#,, 40Cr
Grade: 4.6, 5.6, 8.8 10.9
Certificate:ISO9001:2008
Surface: plain (oiled),
Oxide black, Zinc, HDG

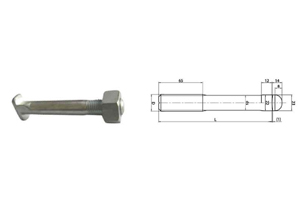

Clip bolt with BSW thread Clip bolt with BSW thread Material: Q235, 35#, 45#, 40Cr
Grade: 4.6, 5.6, 8.8, 10.9
Certificate:ISO9001:2008
Fish bolt used for rail joints (with railnuts and spring washers) Fish bolt used for rail joints (with railnuts and spring washers) Material: Q235, 35#, 45#,, 40Cr , C45
Grade: 4.8, 8.8, 10.9 Size: 22×135, 24×135, 24×145
Surface: plain (oiled), Oxide black, Zinc, HDG
Types: BS standard, R54 rail in Indonesia, AS1085.4-1999, Russian standard, AREMA standard, etc.

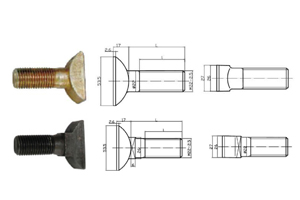

Clip bolt HS26 & HS32 Clip bolt HS26 & HS32 This type of bolt is used to connect base plates and rail clamps together with nuts and washers. Two types of clip bolts are available: with square neck or without neck.
Standard: UIS864-2
Material: Q235, 35#, 45#
Grade: 4.6, 5.6, 8.8
Standard: UIC, GB, BS, DIN and GOST or ISO, etc.
Surface: Plain, black painting or upon customer requirement
For rail types: M20 X 60 30Kg rail, M20 X 75 30Kg rail, M22 X 66 40Kg rail, M22 X 80 48Kg rail, etc.
Clamp bolt and inserted bolt for Russia Clamp bolt and inserted bolt for Russia Material: Q235, 35#, 45#
Grade: 4.6, 5.6, 8.8
Size: M22 ×75, M22 ×175
Surface: Plain, black painting or upon customer requirement

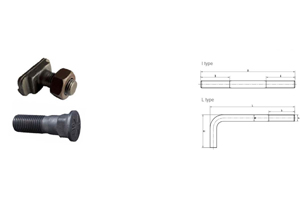

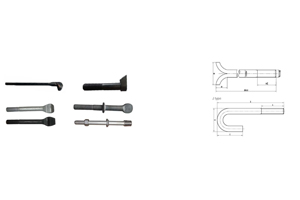

Anchor bolt Anchor bolt We produce rail anchor bolt for concrete sleeper rail fastenings or for crane rail fastening systems.
Material: Q235 Grade: 4.6, 5.6, 8.8
Surface: Plain, black painting or upon customer requirement
Type: L type,J type, I type, curve bolt, or the type by customers’ drawings

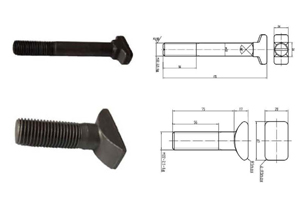

T-bolt T-bolt Material: Q235, 45#
Standard:GB37-88
Size: M5-48
Grade: 4.6, 5.6, 8.8, 10.6, 12.9
Surface: Natural or according to customers' requests

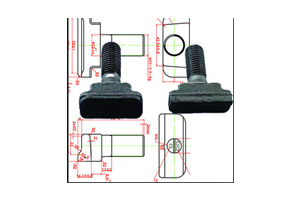

Special bolt Special bolt Material: Q235, 35#, 45#
Grade: 4.6, 5.6, 8.8
Surface: Plain, black painting or upon customer requirement

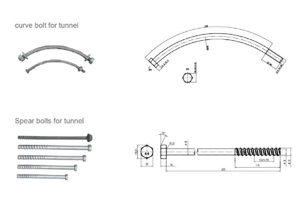

Tunnel bolt Tunnel bolt Type :available by customers drawings and samples .
Surface: plain (oil ) black.zin .HDG etc
Class:4.6.4.8.8.8.10.9.
Types: Square flange bolts with round thread, special curve bolt, spear bolts with special pitches, etc.
