other rail fasteners

As a comprehensive rail track material producers, we can also supply other fasteners such as gauge tie rod, railway turnouts, hook twin tie plates, American bolts, spring washers, flat washers, rail nuts and other products according to clients’ requirements or drawings.

1. Gauge tie rod

We produce various kinds of gauge tie rods, such as AREMA 1-1/4 "insulated gauge tie rod, and other gauge rod used in UIC, BS rails, with length of 600mm,762mm,900mm,1435mm, etc.

gauge tie rod

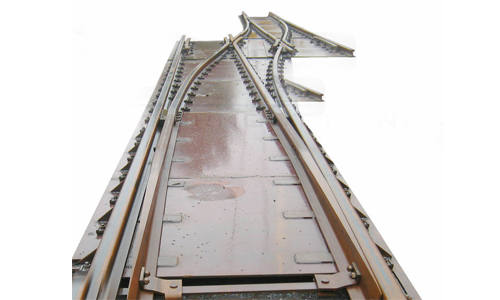

2. Railway turnouts

Types of Railway turnouts : simple turnout, lateral turnout, left hand turnout, right hand turnout, bilateral turnout, symmetrical turnout, symmetrical double curve turnout, symmetrical double turnout, symmetrical three throw turnout, three-way turnout, two-sided double turnout, just to name a few. We can produce others according to the users’ specification requirements.

railway turnout

The specifications of railway turnouts:608, 612, 615, 715, 915, 618, 718, 918, 622, 722, 922, 624, 724, 924, 630, 730, 930, 938, 643 and other non-standard ones.


3. Hook twin tie plates

Except for ribbed tie plates, we also supply various hook twin tie plate, in casting iron or casting steel.

hook twin tie plates

Type Dimension Holes) Incline Rail Weight(Kg)
Rph 1/160 345/285/127/160x15/13 Ø26 (4x) 1:40 S 49/S 54 7,86
Rp 01/01/160 345/285/127/160x15/13 Ø26 (4x) 1:40 S 49/S 54 7,70
Rph 1/210 345/285/127/160x15/13 Ø26 (4x) 1:40 S 49/S 54 10,55
Rph 1/210 345/285/127/160x15/13 Ø36,3 (2x) 1:40 S 49/S 54 10,55
Rph 1/210 FVZ 345/285/127/160x15/13 Ø26 (4x) 1:40 S 49/S 54 10,69
Sph 1(a) 345/350/127x410x15/13 Ø26 (8x) 1:40 UIC 60 20,60
Rph 6/160 370/310/152x160x15/13 Ø26 (4x) 1:40 UIC 60 8,44
Rph 6/210 370/310/152x210x15/13 Ø26 (4x) 1:40 UIC 60 11,32
SZ 60 370/350/152x420x15/13 Ø26 (8x) 1:40 UIC 60 22,73
Rph 11 Ü 664/554x160 Ø26 (4x) 1:40 S 54 15,37
Rph 13 Ü 690/570x160 Ø26 (4x) 1:40 UIC 60 15,27
Rpo 5 345/285/127x160x15/13 Ø26 (4x) 1:20 S 49/S 54 8

4. American bolt

American bolt

American bolt

Button head oval neck track bolt
Diamond neck track bolts
  Or the type by customers’ drawings
Grade 4.6 5.6 8.8
Material Q235 35# 45#
Mechanical properties Tensile strength: ≥400Mpa Tensile strength:≥500Mpa Tensile strength:≥800Mpa
  Yield strength:≥240Mpa Yield strength:≥300Mpa Yield strength:≥640Mpa
  Elongation:≥22% Elongation:≥20% Elongation:≥12%
Cold bending: 90 degree without crack Cold bending: 90 degree without crack
Cold bending: 90 degree without crack
Surface plain (oiled), Oxide black, Zinc, HDG, Wax, Bitumen, Dacromet, Sherardizing, etc.
Standard refers UIC864-2

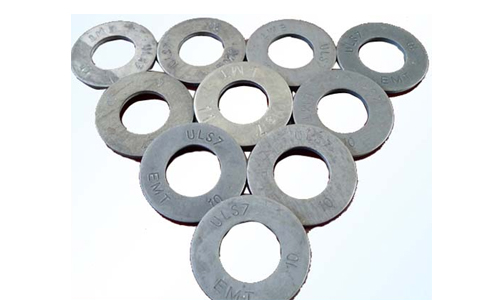

5. Flat washer

flat washer

  • Type: Uls6, Uls7
  • Lock washer
  • Type: WL20, WL24, Wl22
  • Raw material: 65Mn, 60Si2Mn, 70#
  • Surface: Black, zinc, HDG…

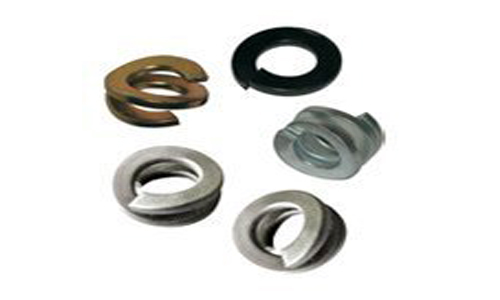

6. Spring washer

spring washer

  • Type: Fe6
  • Raw material: 60Si2Mn
  • Spring steel bars Fe6
  • Hardness: 42-50

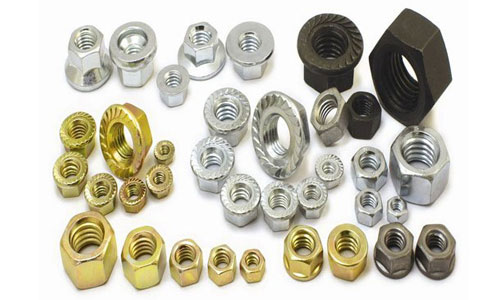

7. Rail Nuts

rail way nuts

  • Type: Hex head, Square head, Flange head
  • Standard: DIN, BS, AREMA
  • Size: above M16
  • Raw material: Q235. 35# 45# 40Mn2, 20MnSi, 35CrMo, 40 Cr. 42CrMo
  • Grade: 4.5, 6, 8, 9, 10, 12
  • Surface: plain, black, zinc, HDG…
