Steel Rail and Sleeper

Steel Rails

Rail Profile

The steel rail is used to guide the train wheels far forwarding, by withstanding the enormous stress by the wheel when a train passes by, and transferring to the tie sleepers as well. The rail shall provide smooth and continuous rolling surface with least resistance. Generally speaking, the heavier the rails and the rest of the track work, the heavier and higher speed for the train these railroad tracks can carry. At electrified railway or automatic block sections, the railroad rail can also be used as the railroad track circuit.

All modern rails now are made by hot rolled steel of specific cross-section (profile) which approximates to I-beam but is asymmetric about a horizontal axis---flat bottomed, so that can rest directly on the tie sleepers and bullhead rails well. A rail is composed by three parts of rail Head, Web and Foot, and overall cross-sectional dimensions are always made of rail height(A), Foot width (B) and Head width(C). Together with the Web thickness(t), the 4 sizes are overall dimensions for rail type classifications.

rail road profile

Due to high quality and competitive prices, our rails have been exported to over 50 countries, including America, Brazil, Canada, Germany, Britain, Spain, Belgium, Poland, India, Thailand, Malaysia, and Sudan, etc.

In order to ensure better quality, the steel rails have to undergo various tests, such as chemical composition test, tensile strength test, hardness test and drop weight test.

Types of rails

1. Light rail of GB11264-89 standard/YB222-63 standard

light rail The light rails are mainly used for laying temporary hauling tracks in forested areas, factories, mines, and construction areas. As an experienced manufacturer of light rail in China, we can provide high quality GB standard light rails at low prices.

  • Size: 6kg, 9kg, 12kg, 15kg, 22kg, 30kg, 8kg, 18kg, 24kg
  • Material: 55Q or Q235B
  • Standard: GB11264-89 standard, YB222-63 standard
  • Length: 6-12m
Light Rails GB11264-89
Size DIMENSIONS (mm) WEIGHT (kg/m)
A B C t
GB 6KG 25.4 50.8 50.8 4.76 5.98
GB 9KG 32.1 63.5 63.5 5.9 8.94
GB 12KE 38.1 69.85 69.85 7.54 12.2
GB 15KG 42.86 79.37 79.37 8.33 15.2
GB 22KG 50.8 93.66 93.66 10.72 22.3
GB 30KG 60.33 107.95 107.95 12.3 30.1


2. Heavy rail of GB2585-2007 standard

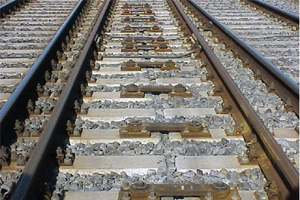

heavy railThe heavy rails are mainly used to lay the track of railways and tunnels. Others include tracks for stacker cranes and other cranes.

  • Size: 38kg, 43kg, 50kg
  • Material: U71mn/50mn
  • Standard: GB2585-2007
  • Length: 12.5m, 25m
Heavy Rails GB2585-2007
SIZE DIMENSIONS (mm) WEIGHT (kg/m)
A B C t
GB 38KG 68 134 114 13 38.733
GB 43KG 70 140 114 14.5 44.653
GB 50KG 70 152 132 15.5 51.514

3. Crane rail of YB/T5055-93 standard

crane rail

  • Size: QU70\QU80\QU100\QU120
  • Material: U71mn
  • Standard: YB/T5055-93 standard
  • Length: 12m
CRANE RAIL YB/T 50ff-93
SIZE DIMENSION(mm) WEIGHT
(kg/m)
MATERAL LEGHTH
(m)
HEAN A
(mm)
HEIGHT B
(mm)
BASE C
(mm)
WEB D
(mm)
QU70 70 120 120 28 52.8 U71Mn 12
QU80 80 130 130 32 63.69 U71Mn 12
QU100 100 150 150 38 88.96 U71Mn 12
QU120 120 170 170 43 118.1 U71Mn 12



4. South African standard steel rail

South  African Standard railSouth African standard steel rails are of optional sizes to meet demands of different road construction conditions. The rails have a greater ability to withstand impact deformation and a lower sensitivity to concentrations of stress.

  • Size: 15kg, 22kg, 30kg, 40kg, 48kg, 57kg
  • Standard: ISCOR standard
  • Material: 700/900A
  • Length: 9-25m
SOUTH AFRICAN ISCOR Standard Rails
SIZE DIMENSION (mm) WEIGHT (kg/m)
A B C t
15 KG 41.28 76.2 76.2 7.54 14.905
22 KG 50.01 95.25 95.25 9.92 22.542
30 KG 57.15 109.54 109.54 11.5 30.25
40 KG 63.5 127 127 14 40.31
48 KG 68 150 127 14 47.6
57 KG 71.2 165 140 16 57.4



5. Australian standard steel rail

  • Australis rail Size: 31kg, 41kg, 47kg, 50kg, 53kg, 60kg, 66kg, 68kg, 73kg, 86kg, 89kg
  • Standard: As 1085 standard
  • Material: 900A/1100
  • Length: 8-25m
AS 1085 Rails
Size Dimension(mm) Weight(kg/m) Material Length(m)
Head(mm) Height(mm) Bottom(mm) Web(mm);
31KG 63.5 117.5 108 11.5 31.5 900A/1100 8-25
47KG 70 141.3 127 14.3 46.5 900A/1100 8-25
50KG 70 154 127 15 50.8 900A/1100 8-25
60KG 70 170 146 16.5 61 900A/1100 8-25
68KG 73.4 186 152 17.5 67.6 900A/1100 8-25
73KG 70 157 146 32 73.63 900A/1100 8-25
86KG 102 102 165 84.11 85.5 900A/1100 8-25
89KG 102 114 178 51 89.81 900A/1100 8-25



6. UIC860-O standard steel rail/UIC60 rail/railway for UIC60

rail UIC860

  • Size: UIC54, UIC60
  • Standard: UIC860-o standard/EN-13674-1
  • Material: 900A/1100
  • Length: 12-25m
UIC 860 Standard Rails
SIZE DIMENSION (mm) WEIGHT (kg/m)
A B C t
UIC 54 70 159 16 54.43
UIC 60 74.3 172 16.5 60.21



7. BS11-1985 standard steel rail

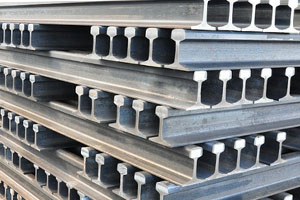

 Rail BS 11-1985

  • Size: BS50'O', BS60A, BS60R, BS70A, BS75A, BS75R, BS80A,BS80R, BS90A, BS100A, BS113A
  • Standard: BS11-1985 standard
  • Material: 700/900A
  • Length: 8-25m
BS11:1985 Standard Rails
SIZE DIMENSION (mm) WEIGHT (kg/m)
A B C t
50O 52.39 100.01 100.1 10.32 24.833
60A 57.15 114.3 109.54 11.11 30.618
60R 57.15 114.3 109.54 11.11 29.822
70A 60.32 123.82 111.12 12.3 34.807
75A 61.91 128.59 114.3 12.7 37.455
75R 61.91 128.59 122.24 13.1 37.041
80A 63.5 133.35 117.47 13.1 39.761
80R 63.5 133.35 127 13.49 39.674
90A 66.67 142.88 127 13.89 45.099
100A 69.85 152.4 133.35 15.08 50.182
113A 69.85 158.75 139.7 20 56.398



8. JIS E 1103/1101 standard steel rail

JIS 1103/1101 Standard steel rail

  • Size: 15kg, 22kg, 30A, 37A, and 50N, CR73, CR100
  • Standard: JIS E1103-93/JIS E1101-93
  • Material: According to JIS e standard
  • Length: 9-10m

JIS E 1103/1101 STANDARD
SIZE DIMENSION (mm) WEIGHT (kg/m)
A B C t
JIS 15KG 42.86 79.37 79.37 8.33 15.2
JIS 22KG 50.8 93.66 93.66 10.72 22.3
JIS 30A 60.33 107.95 107.95 12.3 30.1
JIS 37A 62.71 122.24 122.24 13.49 37.2
JIS 50N  65 153 127 15 50.4
CR 73 100 135 140 32 73.3
CR 100 120 150 155 39 100.2



9. Indian (ISCR) standard steel rail

Indian Rail

  • Size: ISCR50, ISCR60, ISCR70, ISCR80, ISCR100, ISCR120
  • Standard: ISCR standard
  • Material: 55Q/U71mn
  • Length: 9-12m
SIZE DIMENSION (mm) WEIGHT (kg/m)
A B C t
ISCR 50 51.2 90 90 20 29.8
ISCR 60 61.3 105 105 24 40
ISCR 70 70 120 120 28 52.8
ISCR 80 81.7 130 130 32 64.2
ISCR 100 101.9 150 150 38 89
ISCR 120 122 170 170 44 118



10. American standard steel rail

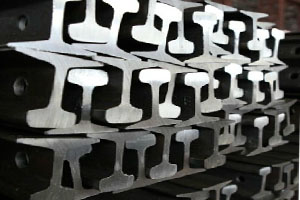

American Rail

  • Size: ASCE25, ASCE30, ASCE40, ASCE60, ASCE75, ASCE85, ASCE90, ASCE115, ASCE136, ASCE175
  • Standard: ASTM standard, AREMA standard
  • Material: 700/900A/1100
  • Length: 6-12m, 12-25m

SIZE
DIMENSION (mm) WEIGHT (kg/m)
A B C t
ASCE 25 38.1 69.85 69.85 7.54 12.4
ASCE 30 42.86 79.38 79.38 8.33 14.88
ASCE 40 47.62 88.9 88.9 9.92 19.84
ASCE 60 60.32 107.95 107.95 12.3 29.76
ASCE 75 62.71 122.24 122.24 13.49 37.2
ASCE 85 65.09 131.76 131.76 14.29 42.17
ASCE 90 65.09 142.88 130.18 14.29 44.65
ASCE 115 69.06 168.28 139.7 15.88 56.9
ASCE 136 74.61 185.74 152.4 17.46 67.41
ASCE 175 109.86 152.4 152.4 38.1 86.8

Steel Railway Sleeper

Together with steel rail, we can also supply steel railway sleeper, which is also called railroad tie/railway tie/crosstie. The tie sleeper is always laid perpendicular to the rails, used to hold the rail upright and keep it spaced to the correct gauge.

steel railway sleeper



We supply steel sleepers of both UIC865 Series Steel Sleepers and BS-500 Series Steel Sleepers, with specifications as below.



UIC865 Series Steel Sleepers
SIZE STANDARD MATERIAL LENGTH
UIC54 UIC865 TO CUSTOMER'S REQUIREMENTS TO CUSTOMER'S REQUIREMENTS
UIC60
BS-500 Series Steel Sleepers
SIZE STANDARD MATERIAL LENGTH
BS75A

BS 500-2000
SAE1522
ST52.3
20MnK
SS490
Q255A

1830mm
1900mm
2000mm
BS75R
BS80A
BS90A
BS100A
BS113A
