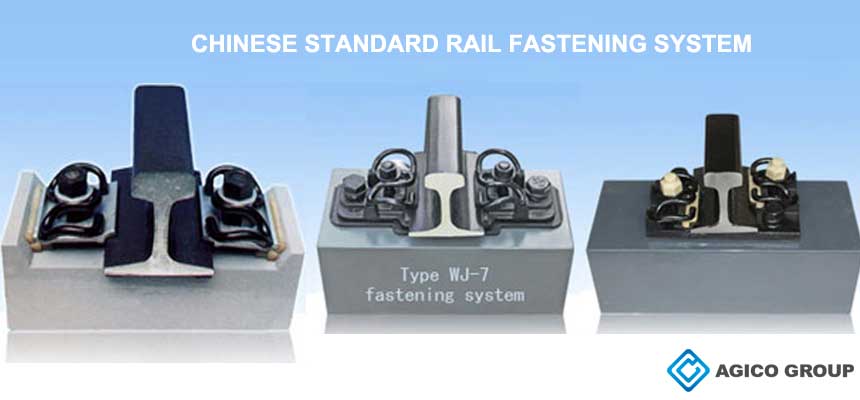

Chinese standard rail fastening system

chinese standard railway fastening system

As a top railway fastening system manufacturer in China, AGICO Rail has 20 years’ experience in providing various types of rail fastening system, such as high speed rail fastening system, common rail fastening system and subway fastening system.

For meeting every requirement of clients, AGICO Rail covers over 100,000 square meters equipped with modern facilities. For example, AGICO Rail has a full casting production line, it adopts flaskless molding vertical line. With advantages of high precision, high efficient, environmental protection and low pollution, the daily output of casting production line can reach 100 tons.

Common rail fastening system

Common rail fastening system is always the hot-sale products at home and aboard, including types of Clip Ⅲ, clip II and clip I.

Clip I fastening system

Clip I fastening system

Clip I fastening system is generally used in the 50/60 kg/m standard rail line or line of semidiameter≥300m of concrete sleeper with shoulder.

Clip II fastening system

Clip II fastening system

Clip II fastening system applies for 60 kg/m standard rail line or line of semidiameter≥300m of concrete sleeper with shoulder. Except for the clip, other parts are the same as Clip I fastening system.

Clip Ⅲ fastening system

Clip Ⅲ fastening system

Clip Ⅲ fastening system is usually applies to 60 kg/m rail of sleeper without shoulder, and it’s a boltless system.

High speed rail fastening system

As the name suggested, high Speed rail fastening system refers to the railway fastening system that applied for a rail capable of carrying a train that reaches passenger line speed at 350km/h (axle load less than 170kN) or mixed passenger and freight line speed at 250km/h(maximum axle load is 230kN). AGICO Rail supplies high speed railway fastening systems including Type WJ-8, Type WJ-7, Clip V and Clip IV.

Type WJ-8 fastening system

Type WJ-8 fastening system

Type WJ-8 fastening system applies to 60 kg/m rail of ballastless sleeper with shoulder.

Type WJ-7 fastening system

Type WJ-7 fastening system

Type WJ-7 fastening system applies to 60 kg/m rail of ballastless sleeper without shoulder.

Clip V fastening system

Clip V fastening system

Clip V fastening system applies to 60 kg/m rail of ballast and concrete sleeper with shoulder.

Clip IV fastening system

Clip IV fastening system

Clip IV fastening system applies to 60 kg/m rail of ballast and concrete sleeper without shoulder.

Subway fastening system

Excepting common rail fastening system and high-speed rail fastening system, AGICO Rail also provide some types of subway fastening system, such as DT Ⅲ fastening system, DT Ⅳ fastening system, DJK5-1 fastening system, DJK6 and so on.

DJK5-1 fastening system

DJK5-1 fastening systemDJK5-1 fastening system

DJK5-1 fastening system applies to 50 kg/m rail,and it is indirect spring system with Gauge Adjustment range: +8~-12mm.

Type DTVI2 Fastening System

Type DTVI2 Fastening SystemType DTVI2 Fastening System

Type DTVI2 Fastening System applies to 60 kg/m rail of sleeper without shoulder, and it is indirect spring system with Gauge Adjustment range: +8~-12mm.

DTⅣ1 fastening system

DTⅣ1 fastening systemDTⅣ1 fastening system

DTⅣ1 fastening system applies to 50 kg/m rail, and it is indirect spring system with Gauge Adjustment range: +4~-8mm.

DJK6 fastening system

DJK6 fastening system

DJK6 fastening system applies to 60 kg/m rail of sleeper without shoulder, and it is indirect spring system with Gauge Adjustment range: +8~-12mm.

DT Ⅲ & DT  Ⅳ  fastening system

DT Ⅲ & DT  Ⅳ  fastening system

DT Ⅲ applies to 60 kg/m rail and DT Ⅳ applies to 50 kg/m rail. This system’s top adjustment height is 10mm and its Gauge Adjustment range: +8~-12mm.
