Chinese Steel Rails Overview

Dec 12, 2017

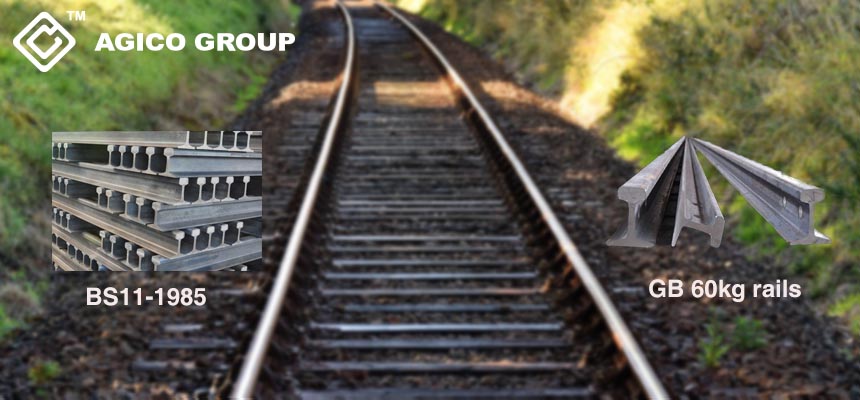

steel rails from china


Steel rail, we also called the railway track, it is crucial to the steel railing system. As a rail component of the railway system, steel rail guides the train forward and bears the enormous pressure. Meanwhile, the steel rails convey the pressure to the railway sleepers. So steel rails play a big role in the railway system and the quality of the steel rails is much important.

Besides, steel rails have another crucial function. The steel rails provide a smooth and less resistance surface for the vehicles that ensure the safe running.


Recently, China consumed 1-1.5 million tons steel rails every year. And the related apartments estimate that China steel rails consumption will reach the 2 million tons. So, whatever the technology or the quality, China formed its own system gradually in term of the steel rails manufacture. During the long-time development of the China steel rails, China steel rails have acquired the praise. China steel rails have been exported to many countries like America, India, and Canada and so on.

As a manufacturer of rail components from China, AGICO Rail would like to introduce the China steel rails for you! For different conditions, we should choose the suitable steel rails. Steel rails have many types and standard to choose.

Steel rail profile

Steel rail can be divided into three basic types based on the steel rails weight. They are light rails, heavy rails and crane rails. How to distinguish light rail and heavy rail? For example, 22 kg light rail that refers to the weight per meter.
22kg light rail is the most common light rail. Meanwhile, it is our hot sale products. In term of the heavy rails, the typical type is 60kg rail and Qu70 crane rail.

Light rails

light rail

Light rail is supported for the light-weight trend tramcar, light-rail train and the monorail train. Due to the limited busload and simple infrastructure, heavy rails are not suited for the ultimate system. Because the heavy steel rails will increase the construction budget. That is the essential difference between light rail and heavy rails.

The main material of the light rail is the Q235B and the Q55 steel. Q235B has good elongation, castability and tenacity so that it has better performance as railway tracks.

Chinese light rail is manufactured according to the GB11264-89. The GB11264-89 standard defines the dimension, appearance, weight of the light rails. China Quality and Technology Supervision Bureau protocols this standard and publishes it in 1989. As a railway components manufacturer, AGICO Rail provides the light rail, either. There are the details of the light rail.

Size

WEIGHT (kg/m)

Material

GB 6KG

5.98

Q235

GB 9KG

8.94

Q235

GB 12KG

12.2

Q235

GB 15KG

15.2

55Q Q235

GB 22KG

22.3

55Q Q235

GB 30KG

30.1

55Q Q235

GB38KG



50Mn U71Mn

Gb43kg



50Mn U71Mn


Heavy rails

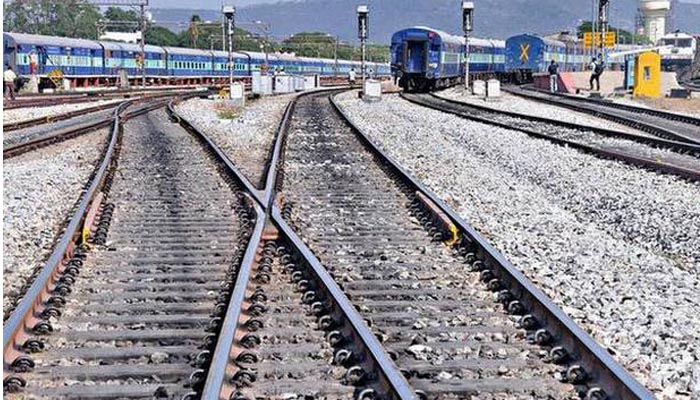

heavy rails from china


Heavy rails are most common in our daily life. The railway track refers to the heavy rails in a large degree. The heavy rail refers to the weight is more than 60kg per meter. The common heavy rail size is 5okg rail, 60kg rail and the 75kg rail. The heavy rail has a bigger fracture surface than the light rails, so the heavy rails can bear much more pressure. There are technology parameters of the heavy rails. AGICO Rail supports various heavy rails like 60kg rails, 75kg rails. Besides, our products are compliant with the GB2585-2007.


SIZE

DIMENSIONS (mm)

WEIGHT (kg/m)

MATERAIL

A    B     C      t

GB 38KG

68

134

114

13

38.733

U71Mn
U75 V

GB 43KG

70

140

114

14.5

44.653

GB 50KG

70

152

132

15.5

51.514

GB 60KG

*

60

GB75KG

*

75

Tips: * means you can customize the steel rails according to your requirements.

Crane rails

The other kind of heavy rail is the crane rail. QU70 rail and QU80 rail are the common crane rails size. Our crane rails up to the YB/T5055-93 standard.


SIZE

DIMENSION(mm)

WEIGHT
(kg/m)

MATERAL

LEGHTH
(m)

HEAN
A
(mm)

HEIGHT
B
(mm)

BASE
 C
(mm)

WEB
D
(mm)

QU70

70

120

120

28

52.8

U71Mn

12

QU80

80

130

130

32

63.69

U71Mn

QU100

100

150

150

38

88.96

U71Mn

QU120

120

170

170

43

118.1

U71Mn




So far, we have introduced the Chinese GB rails. Of course, we also provide the others standards steel rails like India standard steel rails. If you are interested in these steel rails, welcome to send your inquiry.

As a railway components manufacturer from China, we also provide others rail components like rail joint, tie plate, railroad spike, etc. All of our products have high quality and low price. We are looking forward to establishing cooperation relationship with you!
