Where to Buy Railway Sleepers?

Oct 25, 2017
AGICO Rail supports three types railway sleeper.


Railway sleeper is also called rail ties or crosstie. The railway sleeper is a support for the steel rails in railway tracks. The railway sleepers look like a rectangle. Even though the appearance of rail sleeper is not surprising, but it has a vital function.


Generally, the railway sleepers lay to the tracks, hold the rails upright and keep them to a correct gauge. Besides, the railway sleepers should convey the enormous pressure to the ballast bed and can be properly deformed to cushion the pressure, but the railway sleepers had to restore the status as much as possible after the trains passed away.


At first, the railway sleeper was made of wood. Because of the better elasticity and insulation, most of the railway sleepers are made of the wood. Not only for the mentioned, wood is influenced by the temperature change of the surrounding medium slightly. But using the wood to make the railway sleepers is bad for our environment. According to statistics, the world has laid about more than 30 million roots.

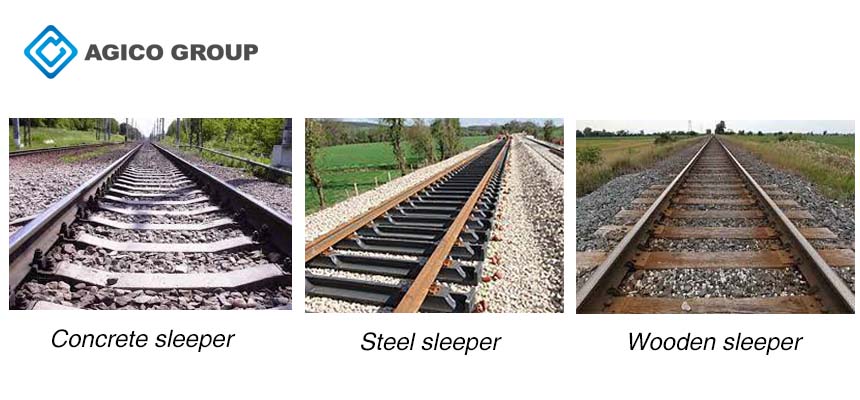

Along with the reduction of forest resources and people's awareness of environmental protection, some countries produced the steel sleepers, concrete sleepers, and plastic sleepers. There are many types’ rail sleepers and sleepers’ manufacturers in the world, but where to buy the railway sleepers? How can you find the railway sleepers manufacturers? Today, we introduce the AGICO Rail for you.


AGICO Rai as a China rail fastener manufacturer, we manufacture the railway sleepers, steel rail and other railway fasteners. Enriched with the industrial experience, AGICO RAIL is good at manufacturing and supplying railway components. AGICO RAIL is a professional company because we have the ISO9001-2000 certificate and a professional team. In term of the railway sleepers, we provide many types and dimensions railway sleepers.


wooden railway sleeper

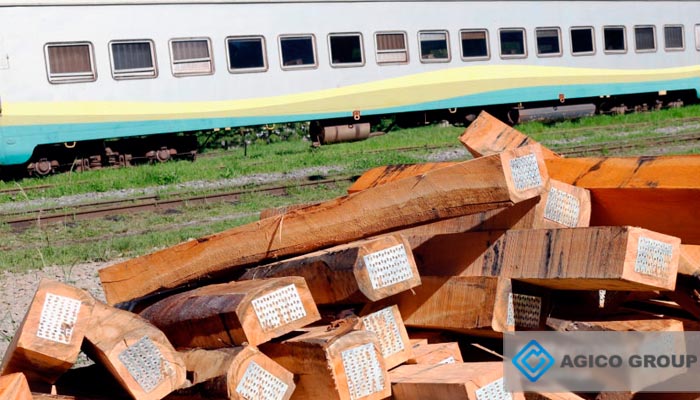

Wooden railway sleeper

AGICO Rail supplies the wooden rail ties which are made of southern pine or the Mongolian pine, and all these wooden railway sleepers are embalmed. For the different application, we supply the timber sleepers for common track, turnout, and bridge.


  •  Common track

For the common track, the hot-sale wooden railroad ties are typeIand typeⅡ.


Type

Length(mm)

Width(mm)

Thickness(mm)

KTMB

2000(±12)

254(+12,0)

127(+11,-3)

type Ⅰ

2500(±60)

220(±10)

160(0,-5)

type Ⅱ

2500(±60)

220(±10)

145(0,-5)

Standard

2600~4800(±60)

240(±10)

160(0,-5)


  •  Railway switch
Turnout is a weak link of the railways due to its special location. So the railway ties are different to the normal tracks.


Type

Length(mm)

Width(mm)

Thickness(mm)

KTMB







Normal

2600~4850

220

160

Standard

2600~4800

240

160


  •  Bridge

Due to the varied topography, the bridges cannot be avoided. So we also provide the railway sleepers for the bridge.


Type

Length(mm)

Width(mm)

Thickness(mm)

KTMB







Standard

3000

220

240/260/280/300


steel railway sleeper

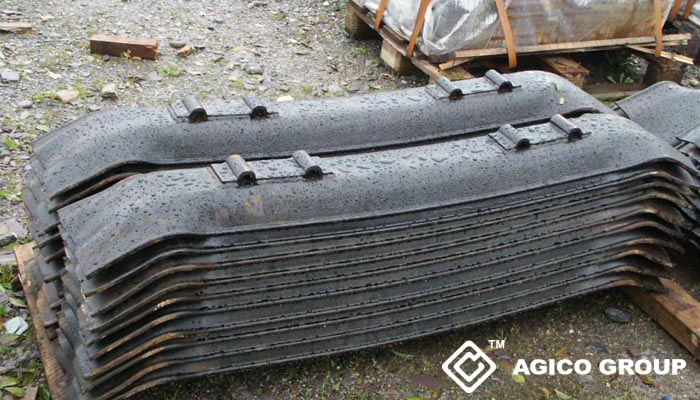

Steel railway sleepers

The steel railway sleepers are stronger than wooden railway sleepers and cheaper than concrete sleepers, so the steel railway sleepers have the unique advantage. Steel railway sleepers are widely used in UK. Besides the wooden railroad ties, we also provide the steel railway sleepers. As a manufacturer, AGICO Rail can provide custom service. You can customize the material and length according to your requirements.



UIC865 Series Steel Sleepers

SIZE

STANDARD

MATERIAL

LENGTH

UIC54


UIC865

According to customer's requirements

According to customer's requirements

UIC60




BS-500 Series Steel Railway Sleepers

SIZE

STANDARD

MATERIAL

LENGTH

BS75A

BS 500-2000

SAE1522
ST52.3
20MnK
SS490
Q255A

1830mm
1900mm
2000mm

SAE1522

ST52.3

20MnK

SS490

Q255A


Besides, we also supply the concrete sleepers. You can contact us to customize the dimension of the concrete sleepers.


agico rail has own advantages.

Advantages of AGICORail

Why you choose our company or not others? As a railway components supplier, we have our own advantages.


  •  High quality

As a company, we have rich experience. We have cooperated with many companies at home and abroad, that is enough to prove the quality of our products. Besides, we have our own professional team to support the quality of our products.

  • Other rail components

As a rail components supplier, we also provide other rail components like rail clip, rail tie plate, rail joint and so on. So we can provide a series of rail components that can save your time and budget.

  • Custom service

First, we provide many types and the different standards railway sleepers, such as AREMA, UIC, DIN, BS, GB, etc. And as we have mentioned, the material and length of railway sleepers can be customized according to your requirements.

  • Free sample

Based on our sincerity, AGICO Rail supplies free samples before your order.

  • Transport service

Based on the long-term cooperation with many ship companies, we promise your products will ship to you safely.  Besides, we support many kinds of package methods. You can choose the most suitable methods for you.
