Quality steel rail for sale

Nov 25, 2016
steel-rail

As an essential component of railway track structure, steel rail is applied to guide train wheels move forward. The function of rail is to withstand the enormous pressure of the wheel, and pass it to the sleepers. Steel rail must provide continuous, smooth rolling surface of least resistance to train wheel. Modern rail take many years to improve the quality of materials, for example, material of steel rail is changed into steel from iron. Steel rail is typically made into I-beam, and it is made of high-quality steel alloy. The strength of rails and other track parts is important for train to keep faster and safety. How rails are made?

Types of rail

According to different ways like weight, standard, tensile strength, steel rail can be divided into several types. Take national standard as an example, we can classify Steel rail into the following types.

rail

Chinese standard steel rail

By the weight per meter, Chinese standard steel rail can be classified into three types, such as heavy rail, light rail and crane rail. When the weight per meter of steel rail is equal to or less than 30kg, it is called light rail. On the contrary, heavy rail is refer to the weight per meter of rail is more than 30kg

  • As a professional steel rail manufacturer in china, we can provide quality and low price GB standard light railway steel rail. The common sizes light rail from AGICO includes 6kg, 9kg, 12kg, 15kg, 22kg, 30kg, 8kg, 18kg, 24kg and etc. standard of light rail include GB11264-89 standard and YB222-63 standard.

Size A B C t Weight (kg/m)
GB 6kg 25.4 50.8 50.8 4.76 5.98
GB 9kg 32.1 63.5 63.5 5.9 8.94
GB 12kg 38.1 69.85 69.85 7.54 12.2
GB 15kg 42.86 79.37 79.37 8.33 15.2
GB 22kg 50.8 93.66 93.66 10.72 22.3
GB 30kg 60.33 107.95 107.95 12.3 30.1

  • Heavy rail is one of rail types. By the material, heavy rail can be divided into (low) manganese rail steel, (low) copper rail steel, (low) silicon rail steel AGICO provide u71mn heavy 50kg train railway steel rail with low price, and common sizes include 38kg, 43kg, and 50kg. All of sizes are based on GB2585-2007 standard.

Size  A B C t Weight (kg/m)
GB 38kg 68 134 114 13 38.733
GB 43kg 70 140 114 14.5 44.653
GB 50kg 70 152 132 15.5 51.514

  • Crane rail is usually classified into GB standard QU70, QU80, QU100, and QU120. Crane rail is made of u71mn, and with YB/T5055-93 standard.

Size A B C t Weight (kg/m)
QU70 70 120 120 28 52.8
QU80 80 130 130 32 63.69
QU100 100 150 150 38 88.96
QU120 120 170 170 43 118.1

American standard steel rail

American standard steel rail is mainly referred to ASCE series rail. More details at American standard railway products.

american--standard-steel-rail

Britain standard

Generally, material of Britain standard steel rail is 700/900A. AGICO Rail is a BS steel rail manufacturers from China, we can supply top BS11-1985 standard steel rail like 50O, 60A, 60R, and etc.


Size A B C t Weight (kg/m)
50O 52.39 100.01 100.01 10.32 24.833
60A 57.15 114.3 109.54 11.11 30.618
60R 57.15 114.3 109.54 11.11 29.822
70A 60.32 123.82 111.12 12.3 34.807
75A 61.91 128.59 114.3 12.7 37.455
75R 61.91 128.59 122.24 13.1 37.041
80A 63.5 133.35 117.47 13.1 39.761
80R 63.5 133.35 127 13.49 39.674
90A 66.67 142.88 127 13.98 45.099
100A 69.85 152.4 133.35 15.08 50.182
113A 69.85 158.75 139.7 20 56.398

Japanese industrial standard steel rail

Japanese industrial standard rail include 15 kg, 22kg, 30A, and etc. the material of JIS steel rail according to JIS e standard.


Size  A B C t Weight (kg/m)
JIS 15kg 42.86 79.37 79.37 8.33 15.2
JIS 22kg 50.8 93.66 93.66 10.72 22.3
JIS 30A 60.33 107.95 107.95 12.3 30.1
JIS 37A 62.71 122.24 122.24 13.49 37.2
JIS 50N 65 153 127 15 50.4
CR 73 100 135 140 32 73.3
CR 100 120 150 155 39 100.2


South African standard steel rail

South African standard steel rail material adopts 700/900A. As a trusted ISCOR steel rail manufacturer in China, AGICO have a lot of sizes of rail with ISCOR standard.


Size A B C t Weight (kg/m)
15kg 41.28 76.2 76.2 7.54 14.905
22kg 50.01 95.25 95.25 9.92 22.542
30kg 57.15 109.54 109.54 11.5 30.25
40kg 63.5 127 127 14 40.31
48kg 68 150 127 14 47.6
57kg 71.2 165 140 16 57.4

UIC standard steel rail

The common sizes of UIC860-O standard steel rail are UIC54 and UIC60 rail. Material of UIC series rail is 900A/1100.

Size A B C t Weight (kg/m)
UIC54 70 159 140 16 54.43
UIC60 74.3 172 150 16.5 60.21

Besides these types of steel rail mentioned above, AGICO Rail can supply many other international standards steel rail like AS, ISCR, DIN and etc. we can custom different standards according to clients’ needs.

Why choose AGICO?

AGICO Rail is a railway parts supplier that is specialized in manufacturing railway products. After two decades years of accumulation, AGICO Rail has strength to process attractive steel rails in quality and price.

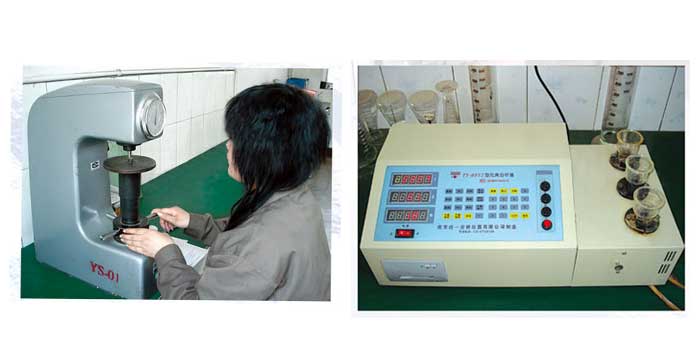

Quality control

We have professional production line, every products must be put through strict quality inspection before delivery.

quality control

Fast shipping

Based on the favorable and stable agreement with ship companies, we promise fast shipping to every client.

Free sample

For meeting customers’ requirement, we can provide free sample before any order.


Besides, AGICO Rail also manufacture rail components like railway fish plate, rail clip, railroad spike, rail fastening system, tie plate, and etc.
