Railway fish plate project in Indonesia

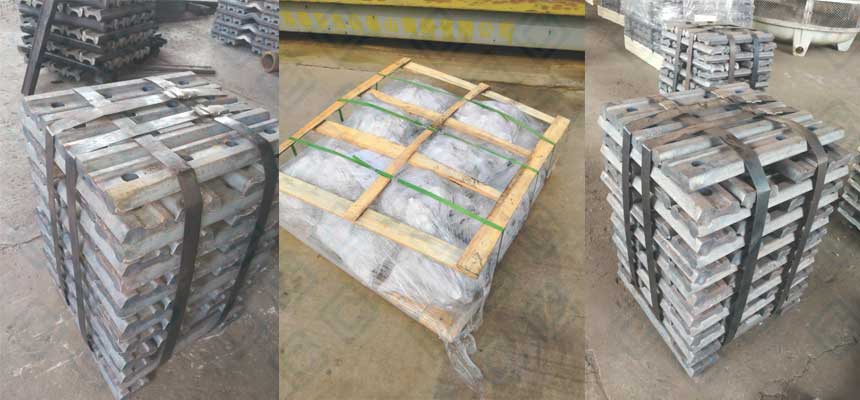

railway fish plate and fish bolt project

In August, 2018, AGICO Rail provides 460 set of railway fish plate and fish bolts to a railway project in Malaysia. This order comes from an Indonesian client, we have long-term cooperative relationship. We customize the railway fish plate with following specifications:

  • Sizes: BS 80A fish plate.
  • Materials: 50# steel
  • Unit weight: 6.63kg
  • Quantity per set: 2pcs

The fish bolt with following specifications:

  • Sizes: BS 80A fish bolts.
  • Materials: 45# steel grade 8.8 or 40Cr steel grade 10.9
  • Unit weight: 0.534kg
  • Quantity per set: 1pce per set bolt and nut

The nut for BS 80A fish bolt with following specifications:

  • Sizes: nut of BS 80A fish bolts.
  • Materials: 45# steel grade 8.8 or Q235
  • Unit weight: 0.12kg
  • Quantity per set: 1pce set bolt and nut

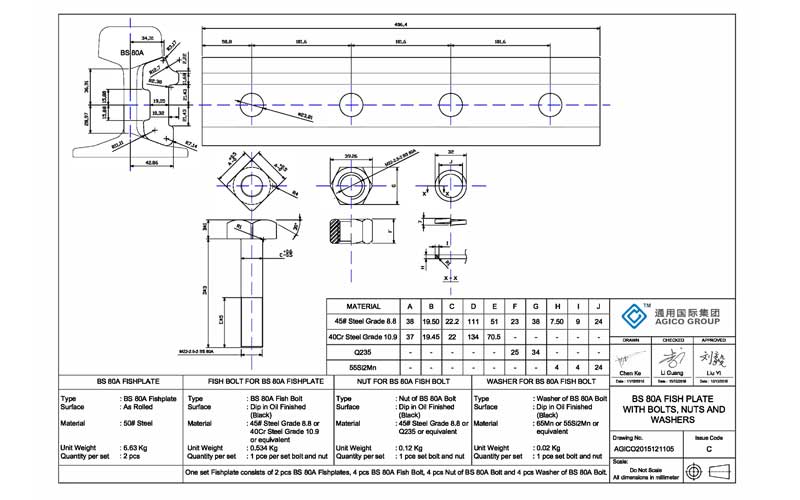

fish bolt drawing
inspection of fish bolt
